Model
Iso-Max 315/3260
Material
Metal
Length
680 mm
Weight
19.2 kg
Diameter
315 mm
Capacity
3260 m3/h
Current
3.2 A
Power
512 W
Speed controller allowed
Yes
Iso-Max 315/3260
Preferred filters
Iso-Max 315/3260
Accessories

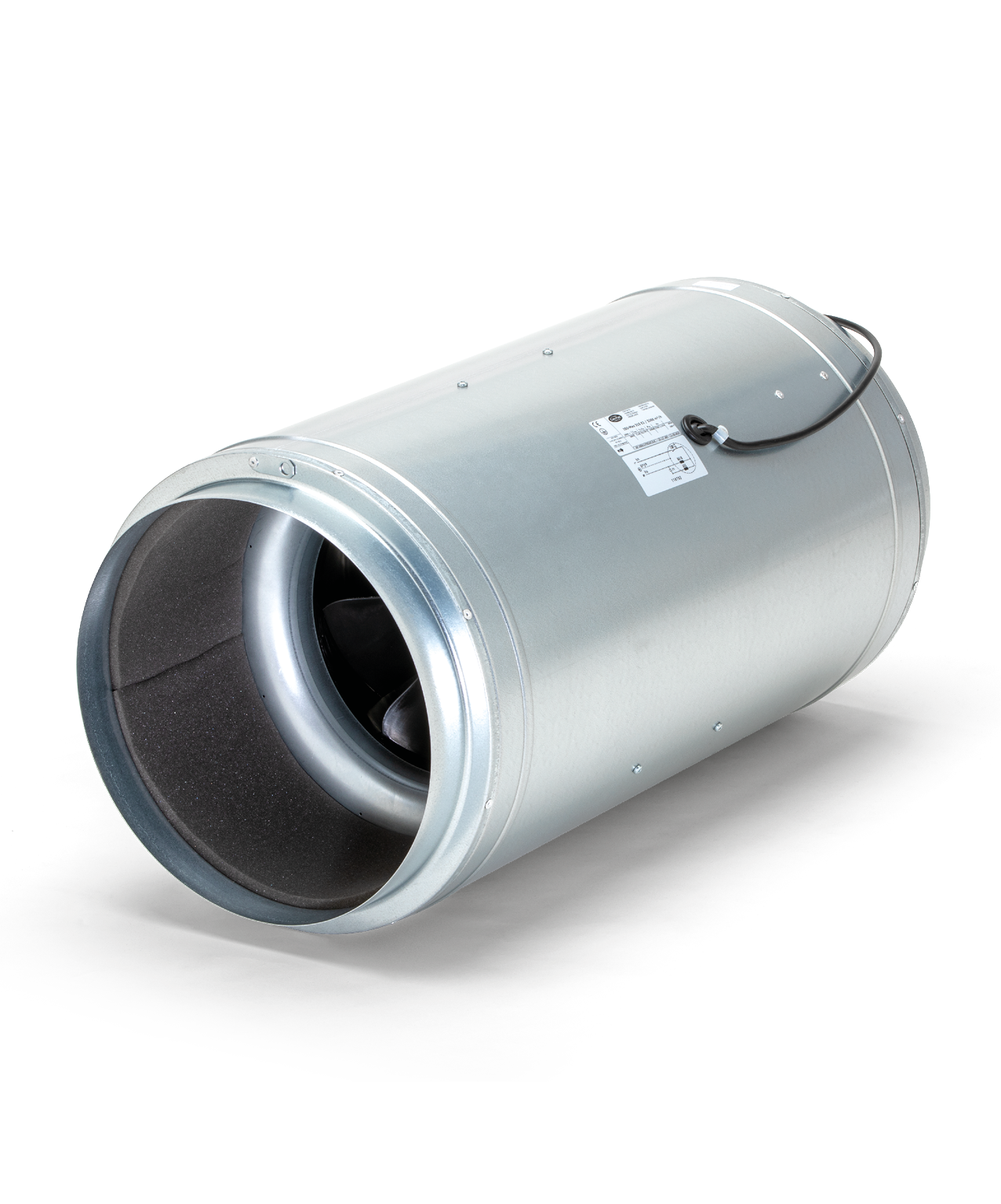

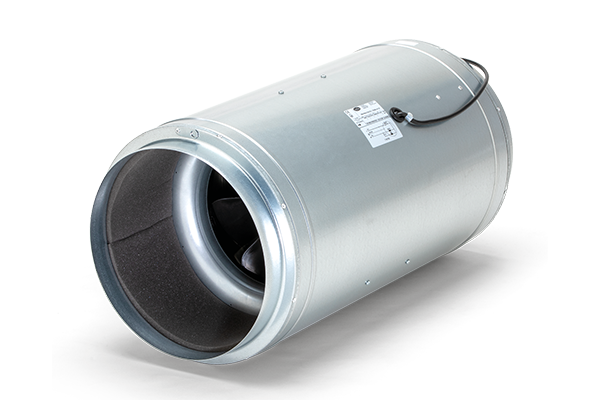

Iso-Max is a totally unique diagonal tube fan designed to be efficient, powerful and silent. Iso-Max, like Max-Fan, uses the stator-rotor system that enables it to be efficient - air performance wise and power consumption wise. However, Iso-Max is a particular type of fan because it is a fan integrated in a silencer; the housing of the fan is completely made out of metal, and for the noise reduction it is equipped with a special type of foam. Its light-weight, strong air performance and quietness makes Iso-Max the most advanced choice for a ventilation application.

Iso-max is now controllable using Can-Fan Satellite 4A, this combination functions as a speed Controller. In case you want to have full control, just Plug Can Fan LCD EC Controller in your Can Fan Satellite 4A and you are ready to go.

Iso Max is equipped with a thermal switch, that turns off the motor if it reaches a dangerous working temperature. In addition, Iso-Max comes with mounting brackets for easier installation.

For efficient performance with the best possible results, we strongly recommend the use of Iso-Max together with Can Filters.
